Updated August 18, 2026
Modern backup strategies often follow the 3-2-1-1-0 rule, but implementation varies widely.
Two environments can claim compliance with 3-2-1-1-0 and deliver very different resilience outcomes.
The difference is architecture design, specifically copy count, media diversity, and isolation between tiers.
As architectures progress from direct-to-object storage to isolated Secure Backup tiers and redundant offsite copies, resilience increases in measurable ways:
- More independent copies
- Greater isolation between control plane and backup data
- Reduced blast radius during ransomware events
The backup architecture progression model below shows how different backup architectures deliver very different resilience outcomes.

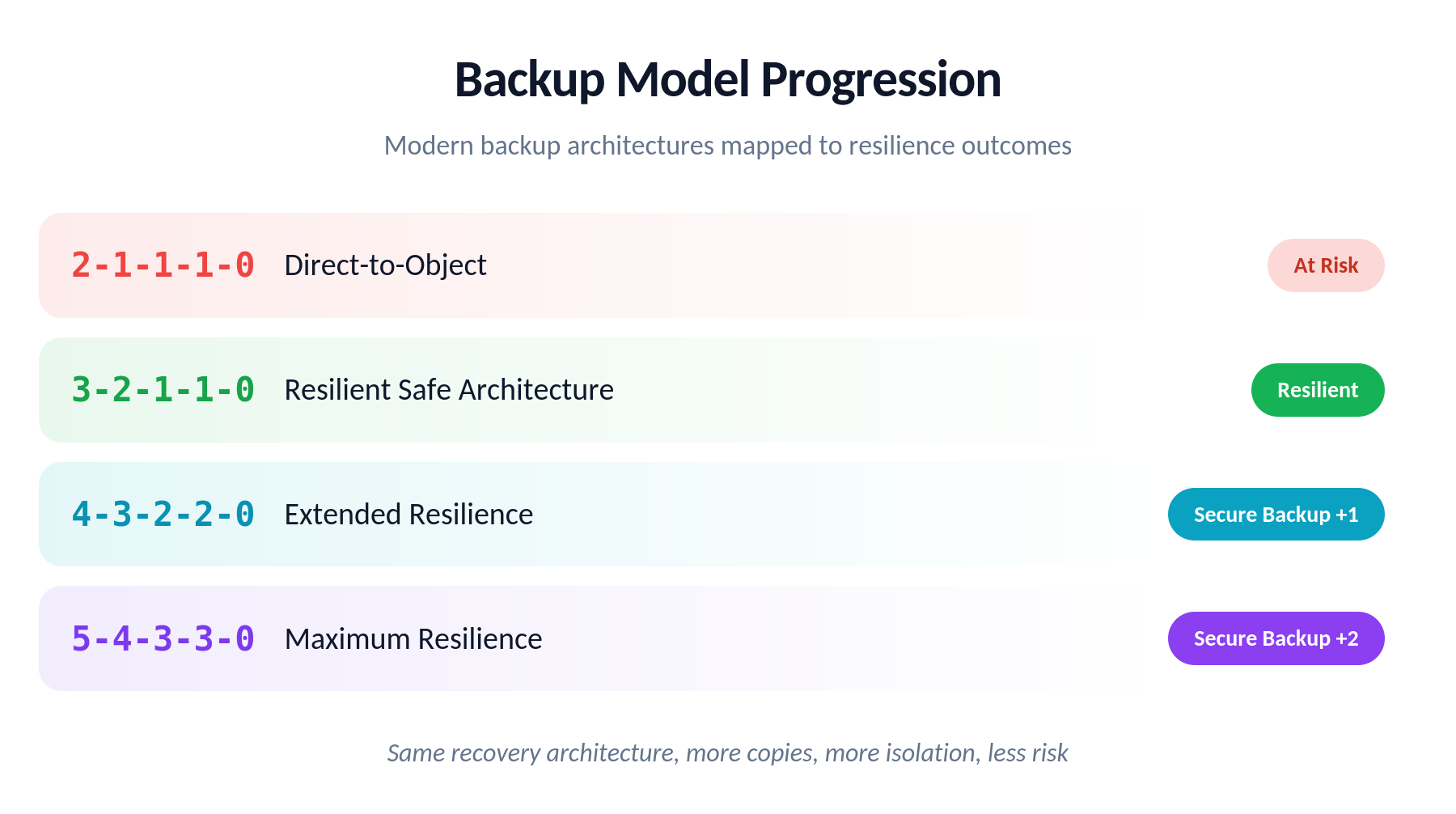

Backup Model Progression
Modern backup architectures mapped to resilience outcomes
Same recovery architecture, more copies, more isolation, less risk
Understanding the 3-2-1-1-0 “Zip Code” Rule
Veeam popularized the modern 3-2-1-1-0 rule for backup resilience:
- 3 copies of your data
- 2 different types of media
- 1 offsite copy
- 1 air-gapped or immutable copy
- 0 backup errors verified through testing
The models below show how backup architectures compare, and how increasing those numbers increases availability and decreases risk.

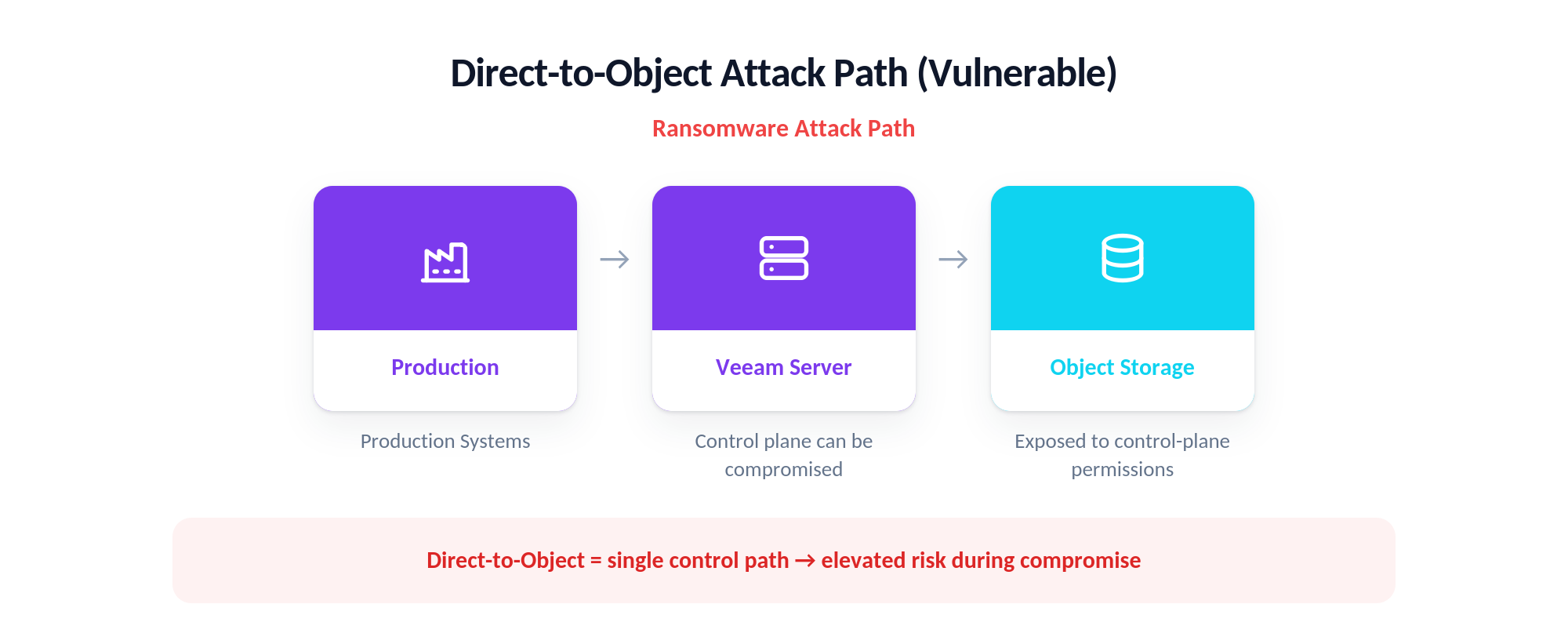

MODEL 1: Direct-to-Object Backup (2-1-1-1-0)
At Risk
Direct-to-Object Attack Path (Vulnerable)
Ransomware Attack Path
Most small Veeam environments today operate at this level. Production data flows through the Veeam control plane directly into object storage, which means a single compromised control path exposes the only offsite copy.
What this means:
- 2 total copies (production + object storage)
- 1 type of backup media
- 1 offsite copy
- 1 immutable layer
- 0 verified errors (assumed)
Risk profile:
This model depends entirely on the Veeam control plane. If the Veeam server is compromised, attackers can target object storage via exposed credentials or API delete permissions.
It provides offsite storage, but not true isolation.

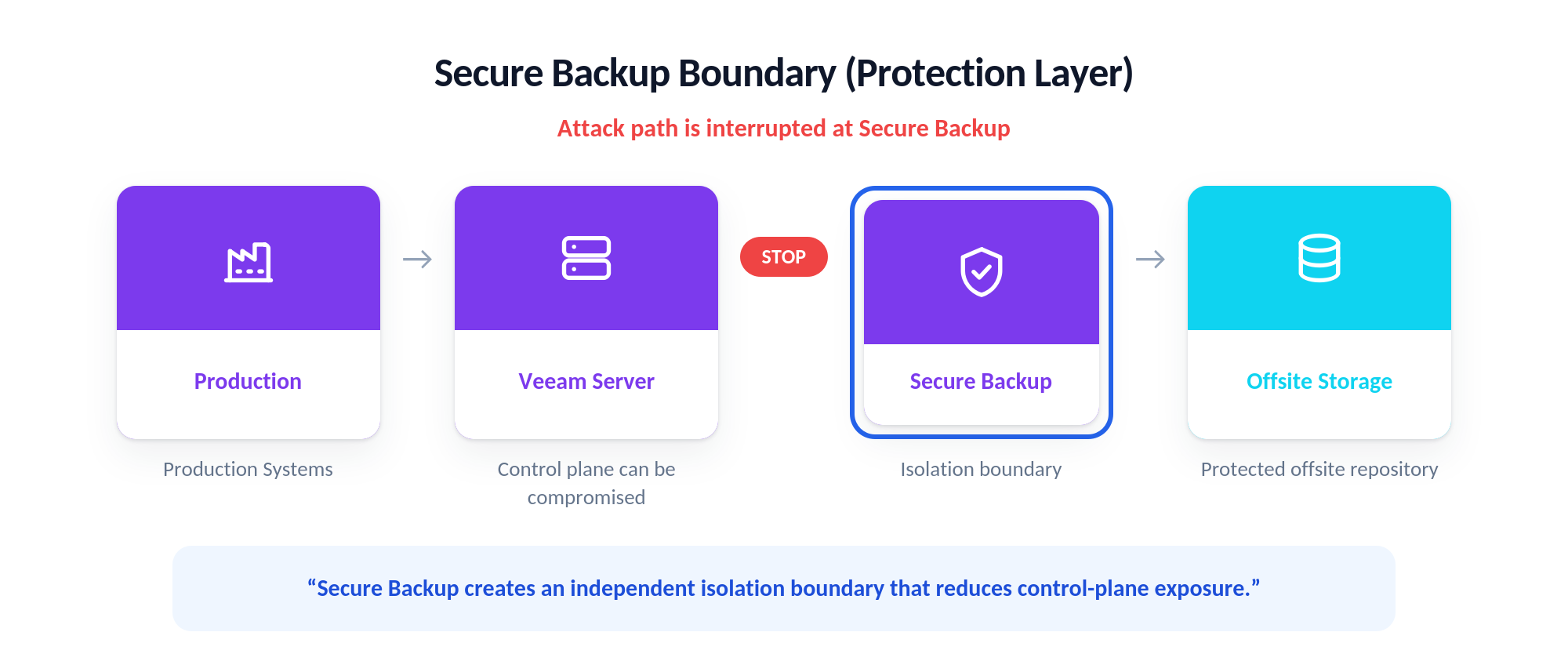

Secure Backup: The Isolation Boundary
Secure Backup Boundary (Protection Layer)
Attack path is interrupted at Secure Backup
STOP
A Secure Backup tier introduces an independent isolation boundary between the Veeam control plane and the offsite repository, interrupting the ransomware attack path before it reaches offsite storage.
Even if the Veeam server is compromised, attackers cannot directly issue destructive commands to the Secure Backup target.
This isolation layer is what transforms basic backup into resilient backup architecture.

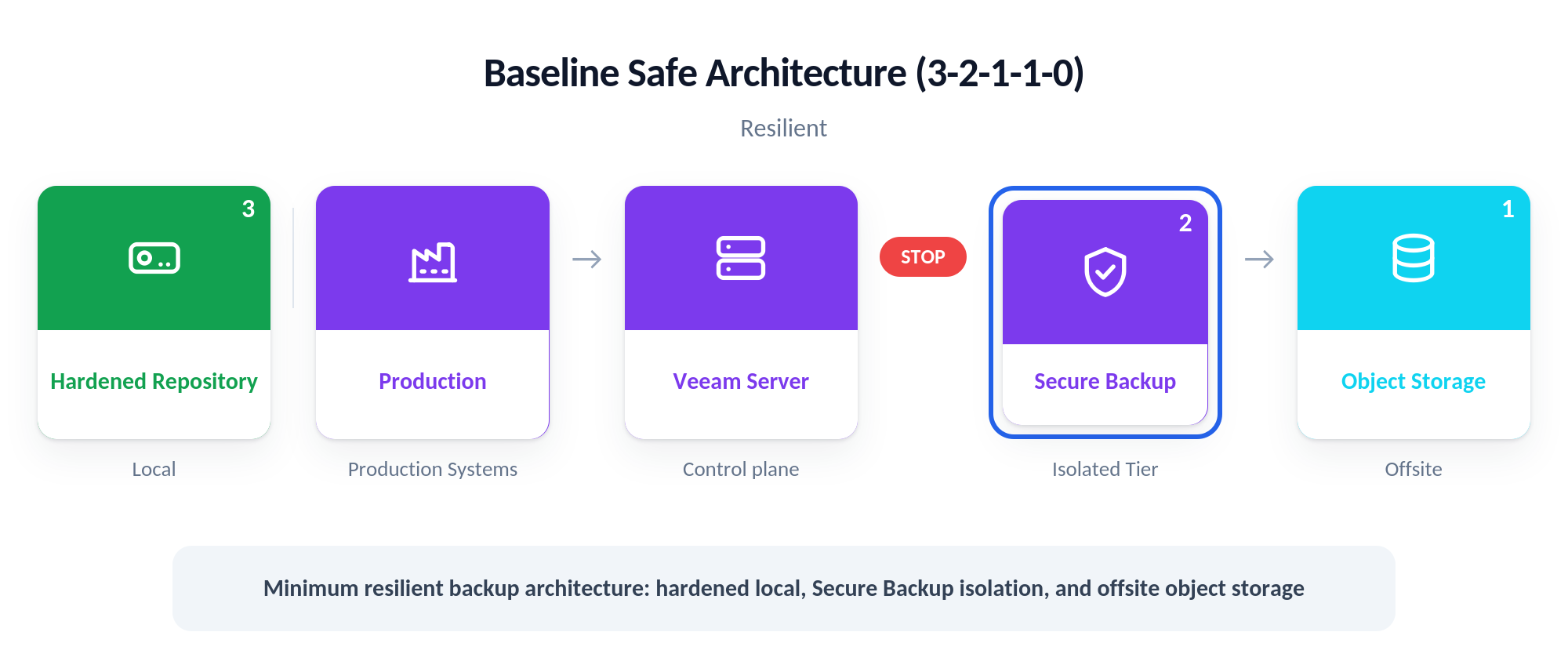

MODEL 2: Baseline Safe Architecture (3-2-1-1-0)
Resilient
Baseline Safe Architecture (3-2-1-1-0)
Resilient
3
STOP
2
1
Backups land first in a local hardened repository, pass through the Secure Backup isolation tier, and finish in offsite object storage. This model increases the first two numbers in the zip code:
From 2-1-1-1-0 to 3-2-1-1-0
What changed:
- +1 total copy (now 3 total copies)
- +1 media type (hardened repository + object storage)
Architecture:
- Production data
- Local immutable hardened repository
- Secure Backup isolation
- Offsite object storage
This represents a modern baseline backup architecture.
It provides:
- Local immutability
- Offsite protection
- Isolation boundary
- Reduced control-plane exposure
Risk decreases. Availability increases.

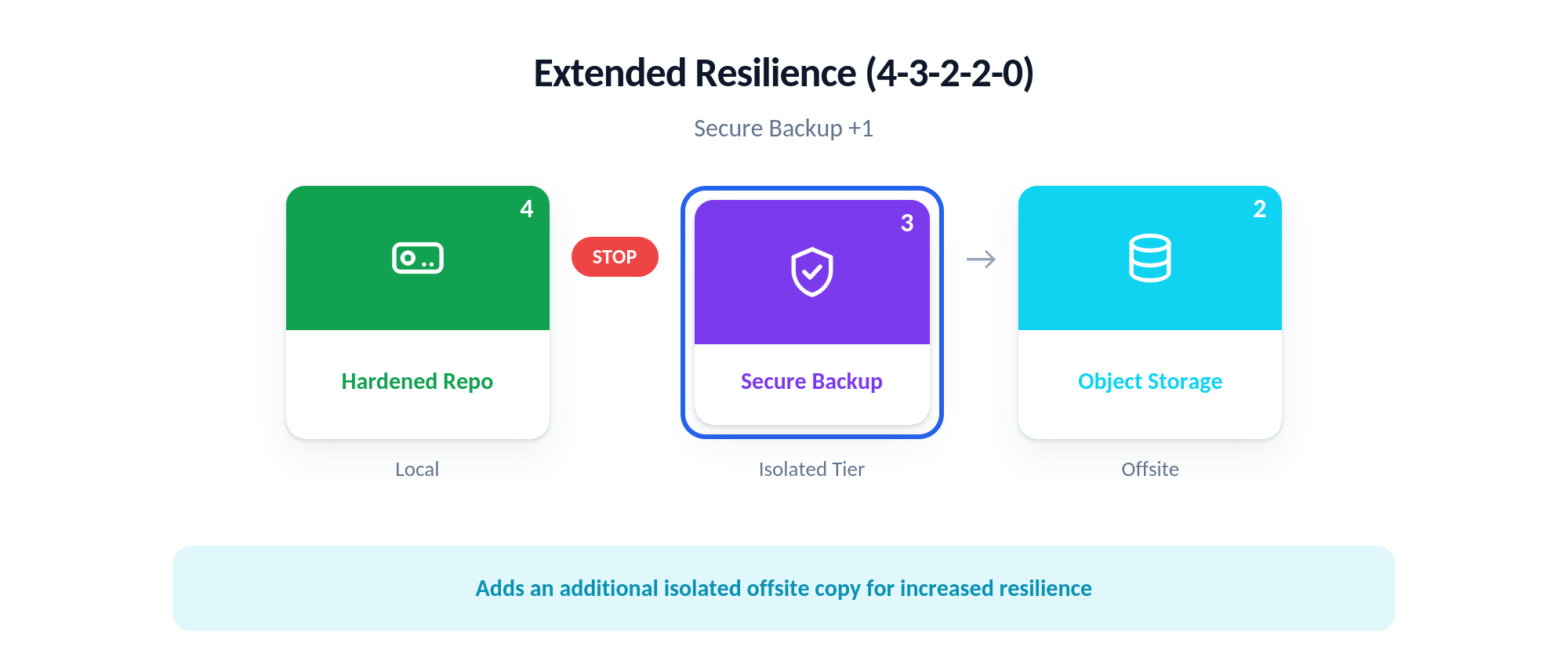

MODEL 3: Extended Resilience (4-3-2-2-0)
Secure Backup +1
Extended Resilience (4-3-2-2-0)
Secure Backup +1
4
STOP
3
2
The same hardened local repository and Secure Backup isolation tier now feed an additional offsite copy. This model increases the first four numbers by one:
From 3-2-1-1-0 to 4-3-2-2-0
What changed:
- +1 total copy (now 4 copies including production)
- +1 media type
- +1 additional offsite copy
- +1 additional air-gapped layer
This creates:
- 4 total copies of data
- 3 different media types
- 2 offsite copies
- 2 air-gapped / isolated layers
The recovery architecture remains the same. What increases is redundancy and availability.
If one provider or repository is unavailable, another remains accessible.

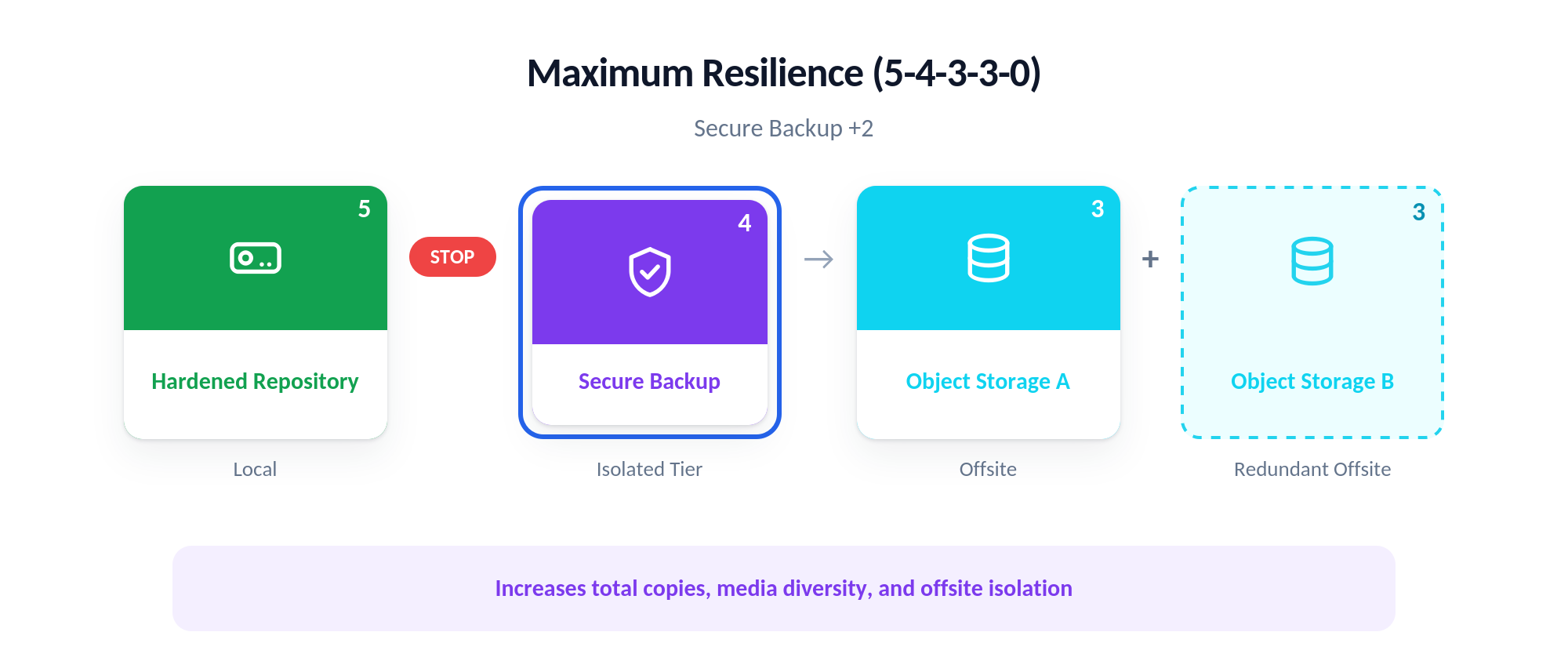

MODEL 4: Maximum Resilience (5-4-3-3-0)
Secure Backup +2
Maximum Resilience (5-4-3-3-0)
Secure Backup +2
5
STOP
4
3
3
Two independent object storage targets sit behind the Secure Backup isolation tier, so no single provider holds the only offsite copy. This model again increases the first four numbers by one:
From 4-3-2-2-0 to 5-4-3-3-0
What changed:
- +1 additional total copy (now 5 including production)
- +1 additional media type
- +1 additional offsite copy
- +1 additional air-gapped copy
This results in:
- 5 total copies of data
- 4 different media types
- 3 offsite copies
- 3 air-gapped / isolated layers
Backups are now distributed across multiple independent providers and storage locations.
Any single failure, whether a provider outage, credential compromise, or region issue, does not eliminate recoverability.
Availability increases again. Risk decreases again.
What Actually Changes Between the Models
The recovery method does not change. The isolation boundary does not change.
Secure Backup protects your backup copies. Cloud IBR provides rapid recovery from those protected backups. Together they create a more resilient backup architecture.
What changes is how many independent copies exist, and how exposed you are to single points of failure.
In simple terms:
- You are buying more availability
- You are reducing risk
- You are increasing recovery certainty
How to Evaluate Your Backup Architecture
- Start with the executive summary diagram.
- Review the 3-2-1-1-0 rule and where your current architecture falls.
- Compare how each model increases backup copies, isolation, availability, and recovery certainty.
- Ask:
- How many copies of your backup do you want when ransomware hits?
- How many independent backup copies do you have today?
- If your backup server were compromised, how would you access your offsite backup copies?
- Does your architecture include an isolation boundary?
- How confident are you that your backups are recoverable?
Budget determines which model makes the most sense.
But resilience always increases as copies and isolation increase.
Final Takeaway
Backup tools are necessary. Architecture determines recoverability.
Resilience does not come from adding more backup paths.
It comes from increasing isolation, increasing availability, and reducing single points of failure.
As you move from 2-1-1-1-0 to 3-2-1-1-0 to 4-3-2-2-0 to 5-4-3-3-0, you are decreasing risk and increasing the certainty that recovery will succeed.
And ultimately:
Ransomware becomes an IT incident, not a business-ending event.
